| Name: | Walking Beam Cooler Cooling Bed For Steel Bar Production Line | Condition: | New |
|---|---|---|---|
| Power: | Variable | Voltage: | Depending On Production |
| Dimension: | All Size, Customized | Warranty: | 1 Year |
| After Sales Service: | Online Support, Field Installation | Usage: | Cooling |
| Load Capacity: | 5-50 Tons | Weight: | Customized |
| High Light: | Rolling Mill Steel Cooling Bed,Electric hydraulic Steel Cooling Bed,Bar Steel Cooling Bed |
||
Cooler Cooling Bed for High Speed Bar Production Line for Rolling Mill
Features:
1. Electric and hydraulic charging type
2. Straight tooth and helical tooth (the rack has an angle with the center line and vertical line of approach table)
3. Double skirtboard, big rack and pinion rack
4. Scratch-proof cooling bed

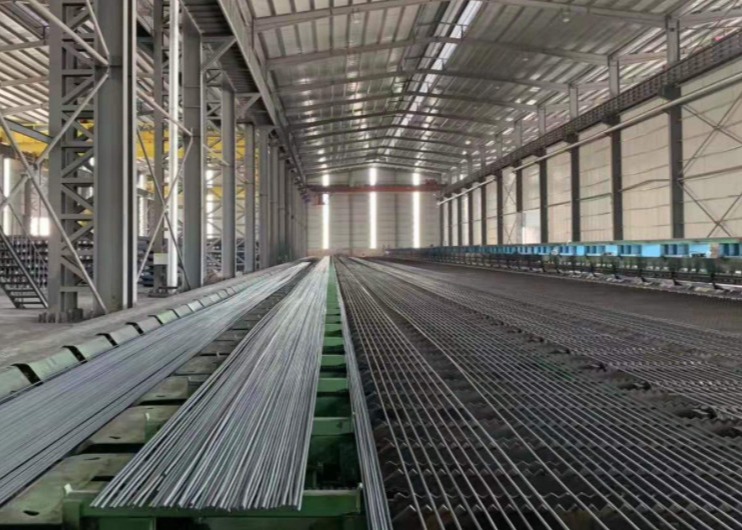

The bar cooling bed is used to accept the input of high temperature bar (round steel, rebar), straighten, cool and complete the assembling and conveying to the next procedure.
Cooling bed products are suitable for different specifications of bar (round steel, rebar), sizes including Φ10~ 50, Na 12~ 90, Na 20~ 90, Na 40~ 130, Na 50~ 180, Na 100~ 300 and so on
General process(thin-diameter rod): heating furnace--rolling--cooling bed--collecting
General process(large-diameter rod): heating furnace--rolling--grouping--sawing--cooling bed--collecting
Approach table
(1) function
The multiple feet bar after the segment flying shears is transported to the cold bed area and accelerated, so that the bar produces a certain initial tension, and keeps the bar running in a straight state. It also makes the bar can rise quickly after being cut off, and separates it from the bar that is still being rolled.
| Input roller table parameters | |
| Diameter of roller | 188mm |
| Roller length | 175mm |
| Roller spacing | 1 200mm |
| Rolling speed | 4.5 ~ 18m /s |
| Line speed of roller table | 4.5 ~ 20m /s |
| The Angle between the surface and the level of the roller table | 12°(the front is gradually transferred from 0° to 12°) |
Braking apron board
(1) function
The braking apron board is a plate located on one side of the input roller table that can move vertically up and down.The friction resistance between the plate and the steel is used to make the steel brake, and the steel is fed into the cold bed straightening plate through the lifting movement.
|
Parameter |
|
| Rolling piece length | 114m |
| Total length of dialing block | 165m(45m before the cold bed) |
| Dial block width | 130m |
| Dial block and horizontal plane Angle | 35° |
| Dial block lifting speed | 0. 15 ~ 0. 3 m /s |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
