| Name: | Walking Beam Cooler Cooling Bed For Steel Bar Production Line | Condition: | New |
|---|---|---|---|
| Power: | Variable | Voltage: | Depending On Production |
| Dimension: | All Size, Customized | Warranty: | 1 Year |
| After Sales Service: | Online Support, Field Installation | Usage: | Cooling |
| Load Capacity: | 5-50 Tons | Weight: | Customized |
| High Light: | 4.5m/s Steel Cooling Bed,Bar Steel Cooling Bed,Steel walking beam cooling beds |
||

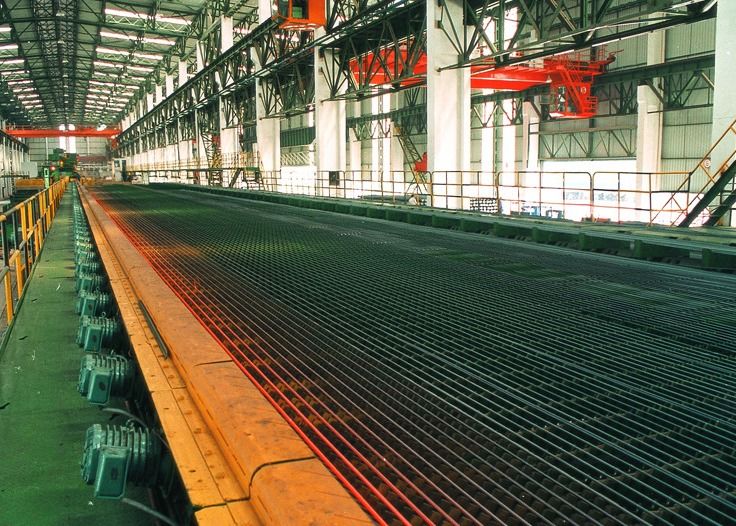

Walking Beam Cooler Cooling Bed for Steel Bar Production Line
The cooling bed is one of the indispensable auxiliary equipment in medium and small bar workshop.Its function is to cut the rods with the length of multiple feet by flying shears after rolling in the rolling mill, transport and unload them to the rack of the cold bed for cooling so that their temperature drops from 900℃ to 100 ~ 300℃, and then collect them into groups and send them to the output roller table, and then the output roller table sends them to the cold shears for cutting into finished products of fixed size.The design quality and installation precision of the cooling bed directly determine the final quality of the product.
Approach table
(1) function
The multiple feet bar after the segment flying shears is transported to the cold bed area and accelerated, so that the bar produces a certain initial tension, and keeps the bar running in a straight state. It also makes the bar can rise quickly after being cut off, and separates it from the bar that is still being rolled.
| Input roller table parameters | |
| Diameter of roller | 188mm |
| Roller length | 175mm |
| Roller spacing | 1 200mm |
| Rolling speed | 4.5 ~ 18m /s |
| Line speed of roller table | 4.5 ~ 20m /s |
| The Angle between the surface and the level of the roller table | 12°(the front is gradually transferred from 0° to 12°) |
Braking apron board
(1)function
The braking apron board is a plate located on one side of the input roller table that can move vertically up and down.The friction resistance between the plate and the steel is used to make the steel brake, and the steel is fed into the cold bed straightening plate through the lifting movement.
|
Parameter
|
|
| Rolling piece length | 114m |
| Total length of dialing block | 165m(45m before the cold bed) |
| Dial block width | 130m |
| Dial block and horizontal plane Angle | 35° |
| Dial block lifting speed | 0. 15 ~ 0. 3 m /s |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
