| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | normal package naked or pack it according to customers' request |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiated |
| Name: | Cooling Bed For Complete Steel Rolling Line To Produce Wire Rod Or Rebar | Condition: | New |
|---|---|---|---|
| Function: | Cooling And Transfer The Rebar | Application: | High Speed Steel Production Line |
| Power: | Variable | Voltage: | Depending On Production |
| Dimension: | All Size, Customized | Warranty: | 1 Year |
| Usage: | Cooling | Load Capacity: | 5-50 Tons |
| High Light: | Rebar Steel Cooling Bed,High speed Steel Cooling Bed,Wire Rod Cooling Bed |
||

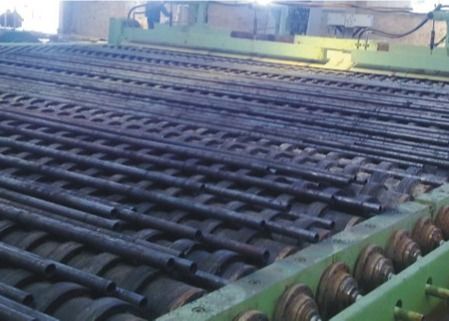

Cooling Bed for Complete Steel Rolling Line to Produce Wire Rod or Rebar
The cooling bed is the working table for cooling the rolled products (rebar, garden steel, steel pipe, etc.) in the metallurgical steel rolling industry.The cooling bed is composed of mechanical transmission system, water cooling system, cooling bed working table, fixed bracket, etc.There are mainly toothed cooling bed, rack step cooling bed, pawl cooling bed, carrier chain cooling bed, rolling type cooling bed, etc.
| Cooling bed size(m) | |
| 1. | 120*10 |
| 2. | 120*12.5 |
| 3. | 120*13.5 |
| 4. | 120*38.5 |
| 5. | 100*12.5 |
| 6. | 72*14 |
| 7. | 66*7.5 |
| General Information of Cooling Bed | |
| Cooling Bed Entering Device | |
| Type | Roller-free pneumatic entering |
| Entering Duration | ~1.48s |
| Cooling Bed | |
| Type | Step-by-step |
| Effective Area | As designed |
| Gear Spacing | 90mm |
| Fixed Gear Spacing | 500mm |
| Movable Gear Spacing | 500mm |
| Step Interval | ~1.48s |
| Driving Motor | AC75kW |
| Alignment Device | |
| Type | One-tow, one-chain driving |
| Roller Diameter | φ100×400mm |
| Roller Surface Linear Speed | 0.2m/s |
| Driving Motor | AC0.37kW |
| Cooling Bed Exiting Device | |
| Type | hydraulic lifting horizontal moving / double channel rotary |
| Rotation Duration | As designed |
Function: storage the billet that need to cool
Positioning: billet outer roller table
Structure form: water-cooled slid centralized cooling bed
Structure and feature:
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
