Steel Scrap Steel-making Electric Arc Furnace

Basic Information
Place of Origin: China
Brand Name: Yushun
Certification: is90001
Minimum Order Quantity: 1
Packaging Details: Normal package naked or pack it according to customers' request
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Negotiated
Detail Information
Name: Steel Scrap Steel-making Electric Arc Furnace Usage: Melting Furnace
Power Type: AC Arc Furnace Material: Billet
Capacity: Customized Tap-to-tap Cycle: 90 Min
High Light:

6t mini electric arc furnace

,

scrap melting mini electric arc furnace

,

6t mini arc furnace


Product Description

Steel Scrap Steel-making Electric Arc Furnace

The mechanical part of EAF electric arc furnace is composed of furnace body, water-cooled furnace cover, furnace cover lifting and rotating mechanism, tilting mechanism, electrode arm, lifting column, high current circuit, cooling water system, hydraulic system, pneumatic system and so on.The main features are as follows:

NO Item Unit Parameters Remark
1 EAF type Set EBT/Pouring Type EBT/Pouring Type
2 Rated type Tons   20t,25T,30T,40T,50T,60T,70T,100T
3 Transformer rated power KVA   20t,25T,30T,40T,50T,60T,70T,100T
4 Tap to tap time min 90
5 Power on hours min 75 According to 20T
6 Power consumption KVA ≤420 According to 20T

1.Electric arc furnace batching scheme

The smelting method adopts the batching scheme of all cold charging scrap steel. The reference batching situation is as follows:

     Metal yield: 92%;

     Average steel output per furnace: ~ 6T (maximum steel output 10T);

     Total loading capacity: 12000 kg

2, smelting conditions

1). The primary smelting furnace adopts oxidation smelting method, and the steel is extracted from the steel tank, and the steel is retained and slag is retained.

2). Machinery, electrical equipment and water cooling system of furnace body must ensure normal production requirements.

3). Only when the furnace body is in normal condition can it meet the smelting requirements.

4). The tools and materials in contact with molten steel must be dry, and the raw materials used in the furnace must meet the requirements of relevant regulations and technical conditions.

5). The steel grades shall not be produced if the technical conditions and technical procedures are not clear and the production conditions are not available.

The furnace tilting device consists of tilting and shaking frame (arc frame), platform, base, tilting hydraulic cylinder and other components, a total of one set.

The high-current line is composed of compensator group, wall-through copper bar group, water-cooled copper bar, large-section water-cooled cable, conductive arm and graphite electrode after the copper bar of the secondary side of the transformer is discharged.

Application:

•Copper Ingot Production Line

•Iron Round Bar Horizontal Casting Line

•Iron Bar Casting Line

•Copper Rod HCC Production Line

•Steel Billet Continuous Casting Line

•Vertical and Horizontal Casting Line

•Seamless Pipe Centrigugal Casting Line

•Aluminium Ingot Bullion CCM Line

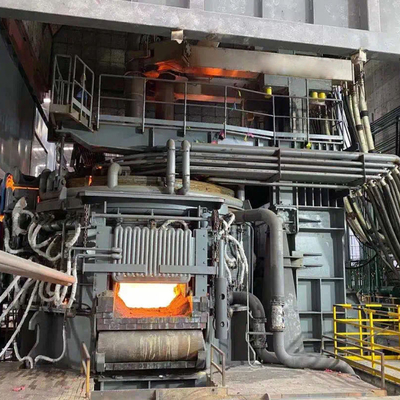

Steel Scrap Steel-making Electric Arc Furnace 0

Steel Scrap Steel-making Electric Arc Furnace 1

Steel Scrap Steel-making Electric Arc Furnace 2

Steel Scrap Steel-making Electric Arc Furnace 3

Steel Scrap Steel-making Electric Arc Furnace 4

Steel Scrap Steel-making Electric Arc Furnace 5

Steel Scrap Steel-making Electric Arc Furnace 6

Steel Scrap Steel-making Electric Arc Furnace 7

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:

Quantity (Tons) 1-100 >100
Est. Time(Days) 60 To be negotiated
