| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Price: | CNY 100000 |
| Packaging Details: | Safety Seaworthy Package |
| Delivery Time: | 0-60 days |
| Supply Ability: | 1 Set 60 days |
| Name: | 12T Steel Scrap Smelting EAF Continuous Charging And Preheating Furnace | Specification: | 10T-80T |
|---|---|---|---|
| Type: | Steel Making Equipment | Usage: | Melting Furnace And Steel Casting |
| Size: | Customized | Voltage: | Depending On Production |
| Feature: | Accurate Temperature Control | Advantage: | Low Energy Consumption |
| High Light: | Preheating Furnace,12T Preheating Furnace,Continuous Charging Preheating Furnace |
||

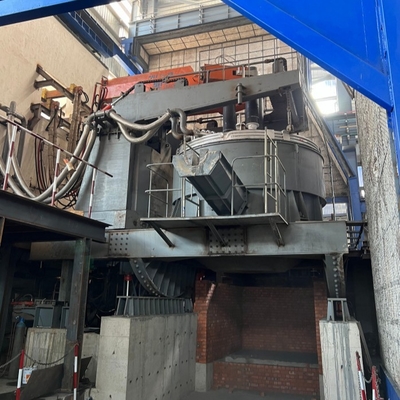

12T Steel Scrap Smelting EAF Continuous Charging and Preheating Furnace
The EAF has several characteristics that make it a popular choice for steel smelting. The water-cooled roof and panels save refractory material, while EBT reduces slagless tapping and tapping temperature. The copper and steel composited conductive arm and large section water-cooled cable reduce dependence on large current, and the furnace door C-O lance and furnace wall coherent oxygen lance reduce power consumption for per ton of steel and smelting period. Furnace collection rate is increased due to adopting furnace roof fourth hole and other fume discharging methods. Scrap steel continuous charging and preheating system could be applied to save energy, reduce consumption, and improve smelting efficiency. The furnace can also be equipped with an automatic charging system for raw materials (DRI, HBI), lime, and alloy. Additionally, the furnace comes with an advanced PLC control system and smelting model to ensure efficient and precise operation.
| Place of origin: | Jiangsu, China |
| Condition: | New |
| Specification: | 10T-80T |
| Type: | Steel making equipment |
| Voltage: | Depend on production |
| Dimension(L*W*H) | Customized |
| Certification: | ISO9001 |
| Weight(T): | 150T |
| After-sales Service: | Field installation, commissioning and training, field maintenance and repair service |
| Warranty: | 1year |
Our Technology
| No. | Feature | |
| 1. | High power |
Ultra-high power technology is the focus of our research. Ultra-high power is the most prominent feature of the new generation of EAF equipment. The advanced steel-making technology of electric furnace ensures the highest level of productivity and quality.As a result, EAF capacity has been greatly increased.
|
| 2. | High efficiency |
EAF uses new scrap preheating technology to minimize production costs, increase production and meet environmental standards.The energy consumption per ton of steel is reduced to below 280kWh through 100% scrap preheating and effective recovery and utilization of heat energy. The modern EAF smelting efficiency is greatly improved by adopting horizontal preheating or scrap preheating technology on furnace top, oxygen lance technology on furnace door and furnace wall, slag foam technology and automatic electrode connection technology.
|
| 3. | High quality |
Combined with LF, VD, VOD and other equipment, EAF can smelt and produce high quality steel or stainless steel. Super high power input and high production capacity are the unique features of this furnace smelting.
|
| 4. | High flexibility |
Rely on the development of the decades of electric furnace of rich experience, we can provide all kinds of advanced and efficient solution for EAF steelmaking, including various specifications and types of electric arc furnace, such as casting with a slot arc furnace steel, top charging electric arc furnace, horizontal continuous charging electric arc furnace, furnace top arc preheating furnace, ferroalloy electric furnace, stainless steel electric arc furnace,As well as the related process, automation and environmental protection system, the advanced oxygen blowing and carbon injection technology strengthens the EAF smelting performance.Oriental Huachuang arc furnace is the ideal smelting equipment for all kinds of steel from carbon steel to high alloy steel and stainless steel.
|
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
