| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | normal package naked or pack it according to customers' request |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiated |
| Name: | HX Series Steelmaking Electric Arc Furnace , 20 Ton Scrap Melting Furnace | Nominal Capacity: | 20 Ton |
|---|---|---|---|
| Condition: | New | Usage: | Melting Furnace |
| Voltage: | Customized | Power Type: | AC Arc Furnace |
| High Light: | 20 ton scrap melting furnace,20 ton steelmaking electric arc furnace,eaf steelmaking electric arc furnace |
||

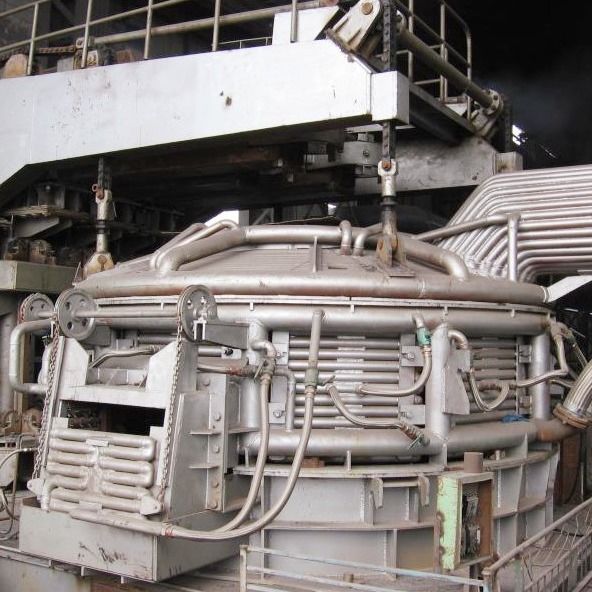

HX Series Steelmaking Electric Arc Furnace , 20 Ton Scrap Melting Furnace
Equipment use:
This equipment mainly produces all kinds of steel castings or ingots for steel casting plants in machinery industry.The raw material can be cold state full scrap steel, partial scrap steel and hot molten iron.
Main type:
HX series three-phase steel-making arc furnace has ordinary power, high power and other different power levels and structure forms.
Equipment component:
Electric furnace transformer, short net, electrode lifting gear, electrode arm, furnace cover, furnace cover lifting and rotating device, furnace, furnace tilting device, ladle, tapping, cooling water system, compressed air system, hydraulic system, feeding system, high voltage power supply system, low voltage electrical control system, basic automation level and computer control system, etc.
| EAF Electric Arc Furnace Specifications | |||
| EAF Capacity Ton | Transformer MVA | Total Weight Ton | Graphite Electrode Diameter MM |
| 10 | 5.5-8 | About 45 | 300-350 |
| 20 | 9-16 | About 58 | 350-400 |
| 30 | 16-31.5 | About 65 | 400-450 |
| 40 | 25-35 | About 96 | 450-500 |
| 80 | 45-63 | About 165 | 500 |
| 100 | 55-100 | About 200 | 600 |
| 120 | 70-110 | About 220 | 600 |
Technical parameter:
| Model | Inner diameter of furnace shell(mm) | Capacity t | Transformer parameter | Graphite electrode(mm) |
| Rated/max. | Rated capacity(MVA) | |||
| HX-0.5 | 1600 | 0.5/1.5 | 0.63 | 150 |
| HX-1.5 | 2100 | 1.5/2.5 | 1.25 | 200 |
| HX-3 | 2600 | 3/5 | 2.2 | 250 |
| HX-5 | 3200 | 5/8 | 3.2 | 300 |
| HX-10 | 3500 | 10/15 | 5-6.3 | 350 |
| HX-15 | 3800 | 15/20 | 6.3-8 | 350 |
| HX-20 | 4000/4200 | 20/25 | 8-12.5 | 400 |
Application:
•Copper Ingot Production Line
•Iron Round Bar Horizontal Casting Line
•Iron Bar Casting Line
•Copper Rod HCC Production Line
•Steel Billet Continuous Casting Line
•Vertical and Horizontal Casting Line
•Seamless Pipe Centrigugal Casting Line
•Aluminium Ingot Bullion CCM Line
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
