1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace

Basic Information
Place of Origin: China
Brand Name: Yushun
Certification: ISO 9001
Model Number: Customized
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Wooden case packing or nude packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 1 set 30 days
Detail Information
Name: 100t/h Capacity Walking Beam Type Reheating Furnace For Rebar Production Line Specification: 100t/h
Type: Hot Rolling Mill Application: Steel Rolling Line
Raw Material: Billets Color: Customized
Size: Customized Voltage: Depending On Production
High Light:

1250c Rolling Mill Reheating Furnace

,

Automatic Rolling Mill Reheating Furnace

,

100t/h walking beam reheating furnace


Product Description

Automatic Feeding Steel Billet 1250c Reheat /Reheating Furnace For Rolling Mill



Details

Billets, Bars, slab induction heating systems include high efficiency electrical energy KGPS powers upply units ranges from 50KW to 50000KW,frequencies between 60 and 10,000 hertz,electro-magnetically shunted heating induction furnace coils assembled to the heating sensor, capacitor assembly bank,water cooled cables to supply unifom heating, temperature equalization heated billets, bars and slabs at the proper temperature before rooling mill opeartion.



Application
Application:Mainly apply for the whole metal materials heating before the forging, extrusion, hot rolling and cutting,and metal materials quenching and tempering, annealing, tempering and other heat treatment as a whole.



Features:

1. Steel can be heated from all sides, high thermal efficiency, short heating time, less oxidized sheet, less possibility of decarburization, will not produce sticky steel, steel surface will not produce scratches, is conducive to the elimination of black marks, improve the heating quality.

2. Low energy consumption, flexible operation.

Be adaptable. It is suitable for heating a variety of steel materials such as ingot, billet, slab, round billet, etc. The requirements on the length, thickness and other aspects of steel materials are not strict.



Manufacturing process of walking beam furnace

The front part of the feeding roller table → weighing → measuring length → positioning of the feeding roller table → opening of the feeding furnace door → hydraulic steel pusher → measuring the billet width → positioning on the billet walking beam → the mechanical equipment (including hydraulic system) of the heating furnace move according to the process design. The billet is heated in the furnace according to the heating process requirements → the billet is positioned through the laser detection point → the steel signal is required → the discharge furnace door rises → the steel is taken by the steel holder → the billet is positioned on the discharge roller → the furnace door is closed → descaling and rolling.



Technical performance of 100t/h walking beam furnace

No. Name Unit Value
1 Usage   Heating before billet rolling
2 Heating capacity t/h Cold charging:100
3 Heating billet specification mm 150mm*150mm*12000mm
4 Heating temperature 9550-1150
5 Fuel type lower calorific value Blast furnace gasKJ/m3 QBlast furnace=800×4.186
6 Rated unit consumption GJ/t Cold charging:1.34-1.38
7 Exhaust temperature ≤150
8 Walking mechanism drive mode   Hydraulic
9 Walking mechanism parameter mm Step pitch: 250(max), lifting100+100
10 Walking period s 45
11 Water beam cooling type   Water cooling





Condition: New
Type: Heating furnace
Warranty of core components: 1 Year
Core components: Bearing, Gearbox, Motor, Gear
Voltage: According to the actual condition
Power: Negotiated
Dimension(L*W*H) Customized
specification: 50t/h-200t/h
Output: Negotiated
After-sales-Service Provided: Field installation, commissioning and training, Field maintenance and repair service
Applicable industries: Manufacturing plant, construction works
Application: Steel Industry
Color: Customized
Billet size: Customized

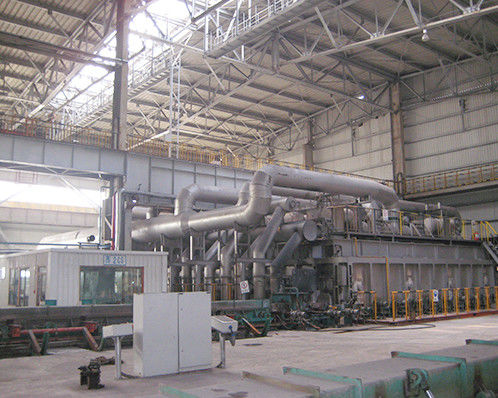

1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 01250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 1
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 2
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 3
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 4
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 5
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 6
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 7
1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 8




1250c Rolling Mill Reheating Furnace 100t/H Walking Beam Reheating Furnace 9
Packaging Details: Wooden case packing or nude packing
Port: Tianjin
Lead Time:

Quantity(Sets) 1-1 >1
Est.Time(Days) 30 To be negotiated




specification
