Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Yushun
Certification: ISO 9001
Model Number: Customized
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: normal package naked or pack it according to customers' request
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: Negotiated
Detail Information
Name: Metallurgical Industry Short Stress Path Rolling Mill Complete Production Line Type: Non-stand Rolling Mill
Condition: New Warranty: 1 Year
Power: Variable Voltage: 440V
Finished Product: Wire Rod,rebar,bar,section Bar Raw Material: Continuous Casting Billets Hot-charging
High Light:

Short Stress Path Rolling Mill Metallurgical

,

Short Stress Path Nonstand Rolling Mill

,

Industry 440V Short Stress Path Rolling Mill


Product Description

Metallurgical Equipment Short Stress Path Steel Rolling Mill Complete Plant

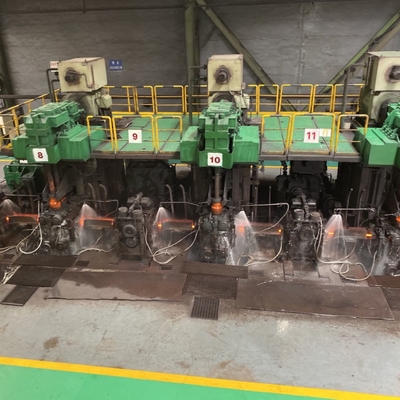

Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 0
We can configure different types of production lines according to the customers' production requirements and specific conditions, which include flexible, automatic continuous rolling mill, semi-continuous rolling mill.We supply the whole production line of steel, including steel wire rod, rebar/ deformed bar, and its intelligent control system, such as high-low voltage switchgear, AC drive cabinet, DC drive cabinet.
Rolling mill specializes producing 6-32mm wire rod, deformed rebar, round bar.


Characteristics:

Characteristics of short stress mill
1. High rigidity
2. Hydraulic motor, independently adjustable
3. External polymer elastic damper
4. Transverse movement, lifting and locking hydraulic cylinders
5. Conventional models include 370, 470, 530, 610, etc.



Feature:
The rigidity of the mill is high, the precision of the product is high, and it is easy to realize negative deviation rolling. It can realize symmetrical adjustment under pressure, stable operation and high operation rate. The load of rolling mill is evenly distributed, and the bearing life is more than 1.5 times higher than that of ordinary rolling mill. The rolls of the rolling mill should be pre-installed and adjusted before roll change, which can save the roll change time, save the adjustment time of the rolling mill and improve the operation rate.


Model:

Mill Model Roll Specification Roll Neck Max. Rolling Force
Ø900 Ø1100/Ø750*1200mm Ø390 7000KN
Ø850 Ø860/Ø730*1100mm Ø360 6000KN
Ø750 Ø770/Ø650*1000mm Ø320 5000KN
Ø650 Ø700/Ø610*850mm Ø300 4000KN
Ø550 Ø610/Ø520*760mm Ø280 3000KN
Ø450 Ø490/Ø420*700mm Ø240 2000KN
Ø350 Ø380/Ø330*650mm Ø200 1000KN
Ø280 Ø320/Ø260*550mm Ø180 600KN


Advantage:

1. The high stiffness of the mill ensures the high precision of the product, and it is easy to realize negative deviation rolling.
2. Can realize symmetrical adjustment. This is of great significance for stable operation, improving operation rate, saving time for maintenance and replacement of guide beam, reducing operation accidents, avoiding process accidents such as elbow, impact and roll wrapping, and improving guide service life.
3. Because the rolling mill changes the transfer path of force, the concentrated load of the pressing screw is changed to the scattered load on both sides of the bearing seat, so that the bearing and bearing seat are under better stress, and the bearing life is more than 1.5 times higher than that of the ordinary rolling mill, so as to reduce the cost of the product.
4. The roll system of this kind of rolling mill should be pre-installed and adjusted before roll change, and the new roll system can be changed about 10min after stopping. And the new roller is adjusted after rolling one or two steel can ensure that the product qualified. Therefore, this rolling mill has good pre-adjustment performance, fast roll change and high yield.


Specification:

Model 250-650
Gear material 20CrMnTi
Shell material High quality cast steel
Production line capacity 3-20ton/hour

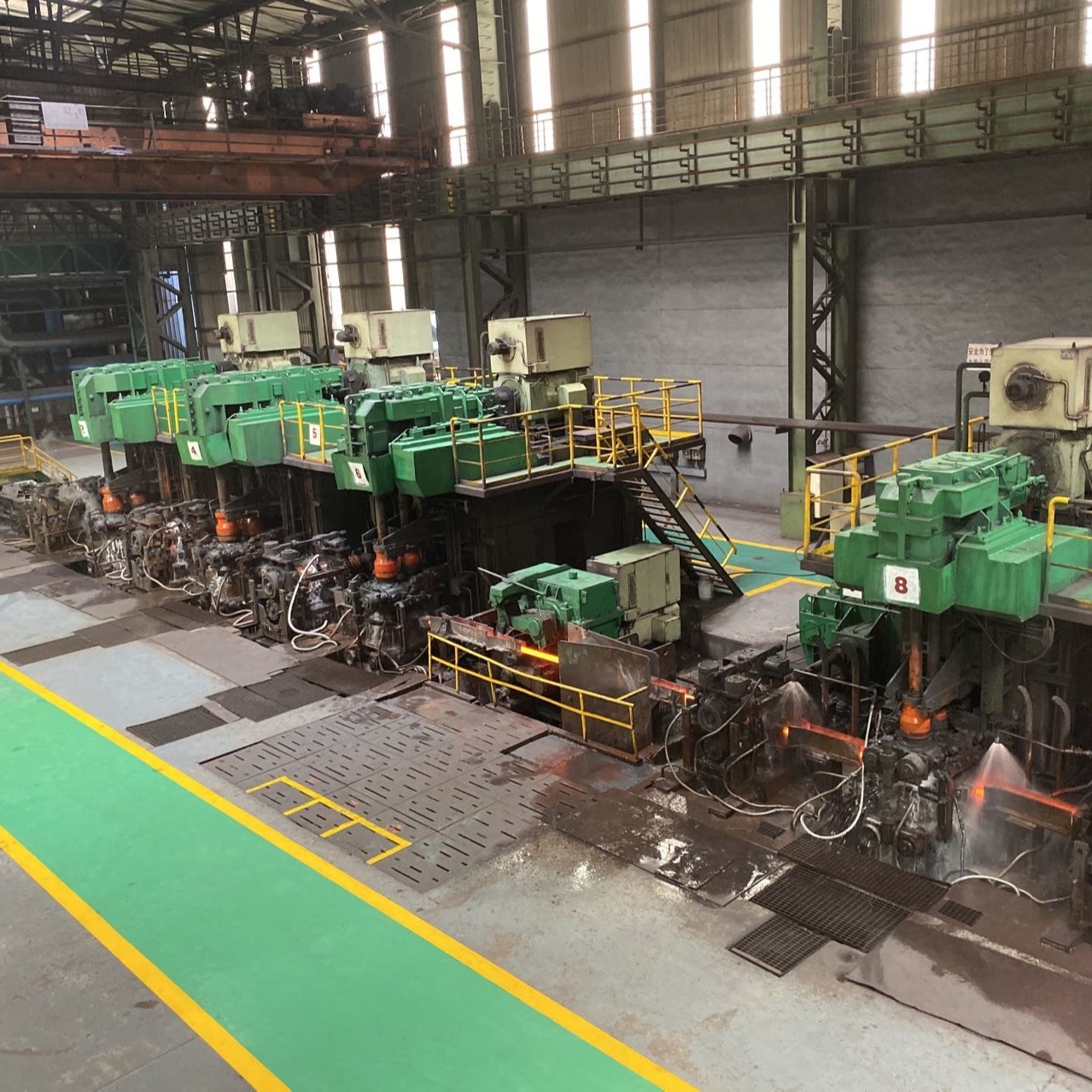

Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 1Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 2Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 3Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 4







Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 5
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 6
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 7
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 8
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 9
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 10
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 11
Industry Short Stress Path Rolling Mill 440V Metallurgical Complete Production Line 12
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:

Quantity (Tons) 1-100 >100
Est. Time(Days) 60 To be negotiated
