|Name:||250t/h Capacity Walking Beam Type Reheating Furnace For Rebar Production Line||Specification:||250t/h|
|Type:||Hot Rolling Mill||Application:||Steel Rolling Line|
|Raw Material:||Billets||Color:||Red, Green, Blue, Etc. Customized|
|Size:||Customized||Voltage:||Depending On Production|
250t/h capacity rolling mill reheating furnace,
50s rolling mill reheating furnace,
250t/h reheating furnace of rolling mill

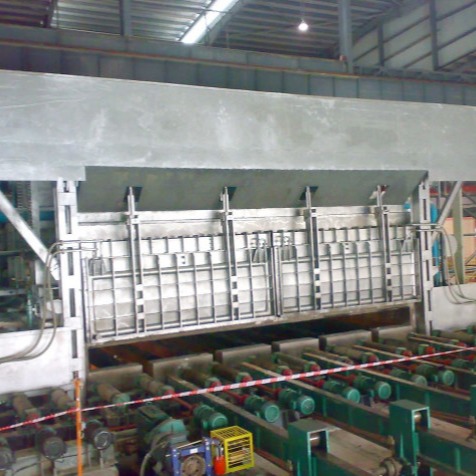

250t/h Capacity Walking Beam Type Reheating Furnace For Rebar Production Line
Manufacturing process of walking beam furnace
The front part of the feeding roller table → weighing → measuring length → positioning of the feeding roller table → opening of the feeding furnace door → hydraulic steel pusher → measuring the billet width → positioning on the billet walking beam → the mechanical equipment (including hydraulic system) of the heating furnace move according to the process design. The billet is heated in the furnace according to the heating process requirements → the billet is positioned through the laser detection point → the steel signal is required → the discharge furnace door rises → the steel is taken by the steel holder → the billet is positioned on the discharge roller → the furnace door is closed → descaling and rolling.
Technical performance of 250t/h walking beam furnace
|1||Usage||Heating before billet rolling|
|2||Heating capacity||t/h||Cold charging:250|
|3||Heating billet specification||mm||130-180×600-1000×10000|
|4||Heating temperature||℃||1150 -1250|
|5||Fuel type lower calorific value||Blast furnace gasKJ/m3||QBlast furnace=800×4.186|
|6||Rated unit consumption||GJ/t||Cold charging:1.34－1.38|
|8||Walking mechanism drive mode||Hydraulic|
|9||Walking mechanism parameter||mm||Step pitch: 550(max), lifting100+100|
|11||Water beam cooling type||Evaporative cooling|
Compared with the pusher-type heating furnace, its advantages are: flexible material transport, when necessary, the furnace charge can be all discharged; the blank is spread out at intervals at the bottom of the furnace or on the beam, which can be heated evenly faster. The fault of arch steel and sticking steel of pusher-type heating furnace is completely eliminated, so that the length of furnace is not restricted by these factors.
1. Steel can be heated from all sides, high thermal efficiency, short heating time, less oxidized sheet, less possibility of decarburization, will not produce sticky steel, steel surface will not produce scratches, is conducive to the elimination of black marks, improve the heating quality.
2. Low energy consumption, flexible operation.
Be adaptable. It is suitable for heating a variety of steel materials such as ingot, billet, slab, round billet, etc. The requirements on the length, thickness and other aspects of steel materials are not strict.
|Warranty of core components:||1 Year|
|Core components:||Bearing, Gearbox, Motor, Gear|
|Voltage:||According to the actual condition|
|After-sales-Service Provided:||Field installation, commissioning and training, Field maintenance and repair service|
|Applicable industries:||Manufacturing plant, construction works|
Packaging Details: Wooden case packing or nude packing
|Est.Time(Days)||30||To be negotiated|
