LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Yushun
Certification: ISO 9001
Model Number: Customized
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: normal package naked or pack it according to customers' request
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: Negotiated
Detail Information
Name: LF Series LF-15t Ladle Refining Furnace Capacity: 15t
Type: Ladle Furnace Voltage: Depending On Production
Dimension: All Size, Customized Application: Melting Metal
Condition: New Color: Customized
High Light:

15t lrf furnace

,

15t ladle refining furnace

,

lrf furnace for molten steel refining


Product Description

LF Series LF-15t Ladle Refining Furnaces Vacuum Degassing

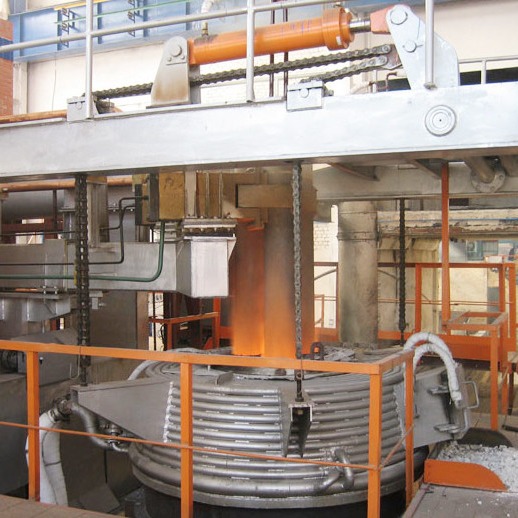

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 0

Main application: LF steel ladle refining furnace can be used for refining molten steel in primary furnace (electric arc furnace, open hearth furnace, converter).Is the production of high quality carbon steel, alloy structure steel, bearing steel, tool steel, stainless steel and other steel and meet the continuous casting, continuous rolling of the main metallurgical equipment.



Equipment features: the equipment has arc heating, blowing argon stirring, wire feeding, temperature sampling, alloying and other functions.Users can choose the ladle refining furnace according to the type of steel produced and smelting process.



Equipment composition: the ladle, the ladle car and drag chain device, heat bridge and guide roller device, furnace cover and the lifting device, electrode lifting mechanism, thread feeding device, short_net temperature sampling device, argon blowing system, water and compressed air system, hydraulic system, high pressure system, electric furnace transformer, low voltage control system, automation control system, etc.



Product details

Structure characteristics: ladle furnace with LD, VD, VOD, AOD four kinds type of furnace, the user can choose according to the type of furnace or boiler type combination steel and smelting process production.

As the refining equipment arc furnace, converter, induction furnace refining furnace with initial refining furnace.

With arc heating, argon stirring, vacuum degassing, temperature and sample alloying and other functions.



Furnace type Ladle Diameter(mm) Capacity Transformer Capacity(KVA) Electrode Diameter(mm) Diameter of Electrode Distribution Circle(mm) Heating Speed of Molten Steel(℃/min)
Rated/Max.(t)
LF-15(Single Arm) 2000 15/16 3200 250 460 ≧3
LF-20(Single Arm) 2500 20/24 4000 250 460 ≧3
LF-30(Single Arm) 2700 30/35 5500 300 550 ≧4
LF-40(Single Arm) 2900 40/46 8000 300 550 ≧4
LF-50(Three Arm) 3000 50/58 10000 350 620 ≧4
LF-60(Three Arm) 3150 60/70 12500 350 620 ≧4
LF-70(Three Arm) 3200 70/80 14000 400 680 ≧4
LF-80(Three Arm) 3300 80/90 15000 400 680 ≧4
LF-90(Three Arm) 3400 90/100 16000 400 680 ≧4
LF-100(Three Arm) 3500 100/115 18000 450 740 ≧4
LF-120(Three Arm) 3600 120/135 21000 450 740 ≧4
LF-150(Three Arm) 3900 150/170 25000 450 740 ≧4
LF-180(Three Arm) 4000 180/200 36000 500 820 ≧4
LF-200(Three Arm) 4200 200/220 38000 500 820 ≧4



Equipment composition

1. Ladle
2. Ladle and towing device
3. The heating tray and a roller device
4. Heating furnace cover and lifting device
5. Electrode lifting mechanism
6. Electric furnace transformer
7. Busbar
8. Argon blowing system
9. Cooling system
10. Hydraulic system
11. Low voltage electrical control system



Characteristics



1. Adopting the water cooled furnace roof equipped with dedusting interface of which the size of smoke outlet is adjustable to keep the tiny barotropic atmosphere and reducing atmosphere inside the furnace.



2. Using the cooper-steel composited conductive arm, reducing electrode pitch circle diameter and prolonging lining service life.



3. Equipped with automatic or manual temperature measurement and sampling device to measure the liquid steel temperature accurately.



4. Large current system adopts large-section water cooled cable, compensators and copper-steel composite conducive arm, thus reduce major loop impedance.



5. Using alloy and slag automatic charging device to accurately measure the charging volume.



6. Equipped with PLC control system and smelting model.

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 1


LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 2

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 3

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 4

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 5

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 6

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 7

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 8

LF-15t Ladle Refining Lrf Furnace For Molten Steel Refining 9

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:

Quantity (Tons) 1-100 >100
Est. Time(Days) 60 To be negotiated
