|Name:||Industrial Shearing Machine Cutting Equipment Flying Shear For Rebar/profile Production Line||Type:||Shearing Machine|
|Usage:||Continuous Rolling||Raw Material:||Steel|
|Max Shearing Area:||17,600 Mm2（φ150 Mm）||Max Shearing Speed:||22 M/s|
|Leveling Precision:||0.3 ±mm/m||After-sales Service:||Field Installation, Commissioning And Training|
22m/s continuous shearing machine,
Profile continuous shearing machine,
22m/s Profile flying shears

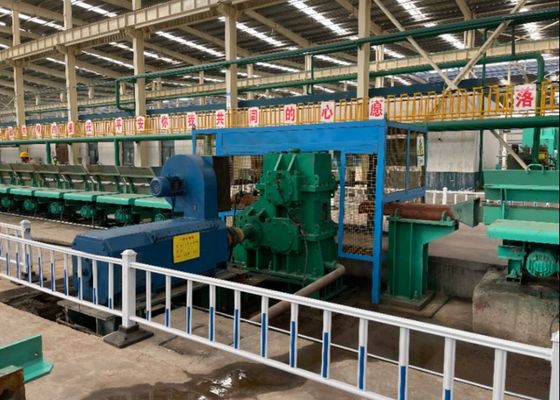

Industrial Shearing Machine Cutting Equipment Flying Shear for rebar/profile production line
Large shear section, large shear force
High shearing accuracy
Optimized box stability, good running stability
Requirements of shearing process:
1. The horizontal speed of the cutting edge shall be equal to or slightly greater than the speed of the rolled piece
2. The two cutting edges should have the best cutting edge clearance
3. In the shearing process, the cutting edge had better be translational in plane, that is, the cutting edge is perpendicular to the surface of the rolled piece
4. Flying shears should work in accordance with a certain working system to ensure the length of the length
5. The acceleration and mass of the moving components of the flying shear should be minimized to reduce the inertia force and dynamic load
Long rod flying shear machine is used in the continuous rod and wire rolling production line for rolling pieces of cutting equipment, in the process of rolling pieces in the actual rolling pieces of cutting head, cutting tail, accident broken and finished product times the length of the shear.We according to different GaXian on different functional requirements to provide different types of flying shear design, such as the crank connecting rod type flying shear machine, rotary flying shear and crank connecting rod + rotary combined type flying shear, different structure in different conditions with different shear rate and shear force, and on the GaXian electromechanical integration control system under the control of frequent rev, braking,Shearing is achieved at large inertia.
|Warranty of core components:||1 Year|
|Core components:||PLC, Gear, Engine, Motor, Pressure vessel|
|After-sales-Service Provided:||Video technical support, online support|
|Applicable industries:||Manufacturing plant, construction works, building material shops|
|Item:||Steel cutting machine|
|Key Selling Points:||HIgh Productivity|
This shear is used to cut different sized metal tube and pipe materials.
1. With hydraulic drive, convenient operation, simple maintenance.
2. Machine and oil tank are in set without installation.
3. High pressure cutting without breakout.
1. Lower investment
2. Steady performance
3. Products are customized for different demands
4. Product capacity can be adjusted according to customer's request
5. Low energy consumption
|The largest cut billet linear velocity||3500mm/s|
Packaging Details: Wooden case packing or nude packing
|Est.Time(Days)||30||To be negotiated|
