|Place of Origin:||Jiangsu, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||normal package naked or pack it according to customers' request|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Name:||Steel Production Industrial Line Bag Filter Pulse Dust Collector Machine||Condition:||New|
|Usage:||Dust Removal||Dimension:||All Size, Customized|
|Warranty:||1 Year||Material:||Steel Material|
|Weight:||Customized||System Air Flow:||300000m3/h|
300000m3/h Industrial Dust Collector,
Steel Industrial Dust Collector,
300000m3/h pulse jet dust collector

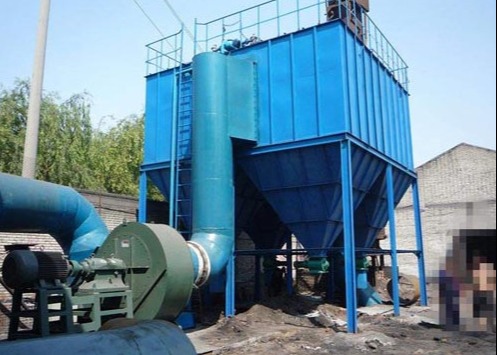

Steel Production Line Industrial Bag Filter Pulse Jet Dust Collector Machine
The industrial bag filter is made of high temperature material . Under the condition of high temperature of 260 degrees, it can also have efficient operation effect, can achieve the role of dust collection, and has many characteristics such as high temperature resistance, high strength, corrosion resistance, wear resistance and so on.Widely used in the current steel plant, non-ferrous metal ironmaking, and power plants and so on, has the effect of chemical corrosion resistance, but also convenient for daily life cleaning.Industrial dust collector is also known as industrial vacuum cleaner, industrial dust collector is used for industrial purposes to collect and absorb the waste medium particles, dust smoke, oil and water produced in the process of production, operation and transportation of industrial cleaning equipment.
|Name||Medium Frequency Furnace||Remark|
|Capture Form||Portable Gas Collection|
|System Airflow (m³/h)||300000|
|Filtering Wind Speed(m/min)||<1.2|
|Main Pipe Diameter(mm)||2800X6,|
|Exhaust Pipe Diameter(mm)||3400X8 H=20000|
|Exhaust Flow Velocity (m/s)||11-13|
|Pulse Valve Caliber||3|
|Number of Pulse Valves||120|
|Number of Bags||1500|
|Filter Material||Coated Polyester Needle Felt||<120℃|
|Proportion of Filter Material(g/m³)||550|
|Dust Remover Resistance(Pa)||≤1500|
|Pulse Valve Blowing Pressure(M Pa)||0.25-0.30|
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
|Est. Time(Days)||60||To be negotiated|
