| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | normal package naked or pack it according to customers' request |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiated |
| Name: | High Temperature Boiler Dust Collector With Blower For Industrial Steel Production | Type: | Pulsed Filter |
|---|---|---|---|
| Material Of Bag: | Needle Felt, Glass Fiber, PTFE, FMS... | Filter Area: | 428.29m2 |
| Inlet Dust Concentration: | 200mg | Core Component: | Motor |
| Application: | Industrial Dust Removal | Condition: | New |
| Dimension: | All Size, Customized | Warranty: | 1 Year |
| High Light: | High Temp Industrial Dust Collector,Pulsed Industrial Dust Collector,High Temperature boiler dust collector |
||

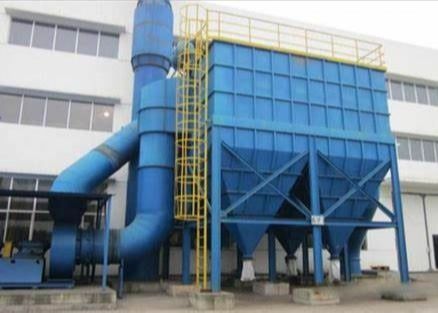

High Temperature Boiler Dust Collector with Blower for Industrial Steel Production
Working Principle
The principle of bag dust collector: The dust contained air will be sucking into the collector box firstly, then the filter bags will resist the dust on its surface and make cleaning air through. At the same time,the pulse jet system will jet compressed air to the filter bag and make the dust which had adsorbed on the filter bag surface to fall into ash hopper to be collected(Reuse).
All the above process will automatically finish under PLC control.
The efficiency of the total system would be 99.5%, dust contain will be control under 30mg/m3 after filter.
Air flow range could from 3000 m³/h to 80000m³/h
Application:
it is widely used in furniture, hardware, ceramics, chemical, building materials, smelting, sewage treatment and many other fields, in order to meet your requirements, we can also customize all kinds of environmental protection products for our customers.
Product advantages:
The submerged pulsing valves is adopted, which has fast opening and closing speed and small self-resistance. For filter-bag with a length of 6m to 8m, the injection pressure is only 0.15-0.3Mpa, and good ash removal effect can be obtained.
Strong ash cleaning ability. When cleaning ash, the acceleration obtained on the surface of filter-bag is far greater than that of other types of bag-type dust collector, and the cleaning is uniform and the effect is good.
High filtering load. Due to the guarantee of strong ash cleaning, even if the bug-type dust collector runs at a higher filtering wind speed, its resistance will not be too high. Generally, 1200-1500Pa is the same as that of the back blowing wind dust collector, which is filtering surface, pulse-jet bag dust collector has a larger processing air volume.
It is convenient to check and replace filter-bag. Filter-bag is easy to install and change bags without binding. Operators do not need to enter the inside of the box, and the operating environment is good.
The equipment cost is low. Due to the high filtering load, the filtering surface required t o process the same flue gas volume is less than that of the reverse blowing wind bag dust collector, so the equipment is compact and occupied a small area.
| Model | DMC-24 | DMC-36 | DMC-48 | DMC-64 | DMC-80 | DMC-96 | DMC-120 |
| Total filtration area(m3) | 18 | 27 | 36 | 48 | 60 | 72 | 90 |
| Filter wind speed(m/min) | 1.04-1.67 | 1.15-1.62 | 1.21-1.71 | 1.25-1.67 | 1.27-1.62 | 1.28-1.7 | |
| Processing air volume(m3/h) | 1500 | 1500-2400 | 2500-3500 | 3500-5000 | 4500-6000 | 5500-7000 | 6500-8500 |
| Number of filter bags(bars) | 24 | 36 | 48 | 64 | 80 | 96 | 120 |
| Air consumption(m/min) | 0.024 | 0.036 | 0.048 | 0.064 | 0.08 | 0.096 | 0.12 |
| Pulse valve(set) | 4 | 6 | 6 | 8 | 10 | 12 | 12 |
| Motor model(kw) | 2.2 | 3 | 3 | 5.5 | 5.5 | 7.5 | 15 |
| Equipment weight(kg) | 300 | 500 | 850 | 1220 | 1450 | 2150 | 2550 |
| Inlet concentration(mg/Nm3) | 200 | ||||||
| Injection pressure(Mpa) | 0.5-0.7 | ||||||
| Withstand negative pressure(pa) | 5000 | ||||||
| Equipment resistance(pa) | ≦1200 | ||||||
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
