700000m3/h Pulse Bag Dust Collector

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Yushun
Certification: ISO 9001
Model Number: Customized
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: normal package naked or pack it according to customers' request
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: Negotiated
Detail Information
Name: Pulse Bag Dust Collector For Industrial Dust Smoke Removal Equipment Type: Pulsed Jet Cloth Filter
Capacity Of Dust Collector: 3000m3-700000m3/h Material Of Bag: Needle Felt, Glass Fiber, PTFE, FMS...
Application: Industrial Dust Removal Condition: New
Dimension: All Size, Customized Warranty: 1 Year
Material: Steel Material Weight: Customized
High Light:

700000m3/h pulse bag dust collector

,

Steel pulse bag dust collector

,

700000m3/h industrial bag filter system


Product Description

Pulse bag dust collector for Industrial Dust Smoke Removal Equipment

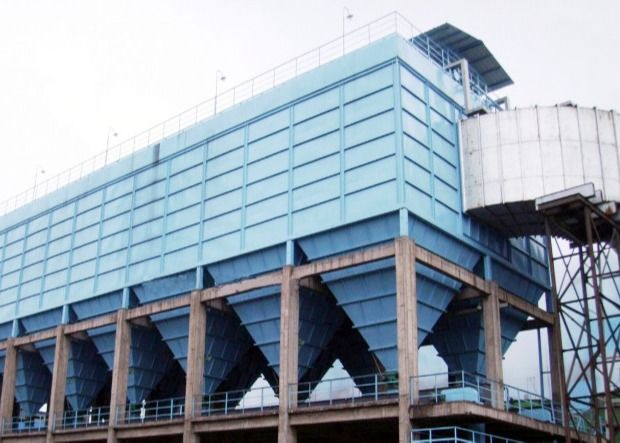

700000m3/h Pulse Bag Dust Collector 0

Bag Dust Collector is a dry industrial filtering device. It is suitable for capturing tiny, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and the dusty gas can be filtered by the filtering effect of the fiber fabric to achieve the treatment effect of flue gas.



Features of Bag Dust Collector

1. High efficiency≥99.5%

2. Low emission concentration ≤20um, but also ≤10um is possible after filtering according to practical situation

3. Low leakage rate

4. Material—carbon steel or stainless steel.

5. Simple Structure, easy maintenance

6. Suitable bags and bag cages fitted according to dust properties. Glass Fiber, needle felt, PTFE, p84., etc

7. The overhaul and bag replacement can be carried out for separate chamber under the condition that system blower and system run normally.

8. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm

9. It is not sensitive to the characteristics of the dust, and it is not affected by dust and resistance.

Model DMC-24 DMC-36 DMC-48 DMC-64 DMC-80 DMC-96 DMC-120
Total filtration area(m3) 18 27 36 48 60 72 90
Filter wind speed(m/min)   1.04-1.67 1.15-1.62 1.21-1.71 1.25-1.67 1.27-1.62 1.28-1.7
Processing air volume(m3/h) 1500 1500-2400 2500-3500 3500-5000 4500-6000 5500-7000 6500-8500
Number of filter bags(bars) 24 36 48 64 80 96 120
Air consumption(m/min) 0.024 0.036 0.048 0.064 0.08 0.096 0.12
Pulse valve(set) 4 6 6 8 10 12 12
Motor model(kw) 2.2 3 3 5.5 5.5 7.5 15
Equipment weight(kg) 300 500 850 1220 1450 2150 2550
Inlet concentration(mg/Nm3) 200
Injection pressure(Mpa) 0.5-0.7
Withstand negative pressure(pa) 5000
Equipment resistance(pa) ≦1200



Working principle:

1. Under the action of the main draught fan, the dusty gas enter into the chamber through air inlet.

2. With the function of inertia and gravity, the coarser particles directly be discharged. Other light fine dust with air is adsorbed on the filter bag surface, the filtered clean gas will come through the filter bag into atmosphere finally.



700000m3/h Pulse Bag Dust Collector 1

Please kindly send your specific request, we would give you a quotation plan.

1.What annual output do you require?

2.What is the main size range of rebar?

3.How long is the billet?

4.What is the fuel for the furnace?

5.How long does the machine work continuously?

And anything else you think necessary.






700000m3/h Pulse Bag Dust Collector 2
700000m3/h Pulse Bag Dust Collector 3
700000m3/h Pulse Bag Dust Collector 4
700000m3/h Pulse Bag Dust Collector 5
700000m3/h Pulse Bag Dust Collector 6
700000m3/h Pulse Bag Dust Collector 7
700000m3/h Pulse Bag Dust Collector 8
700000m3/h Pulse Bag Dust Collector 9
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:

Quantity (Tons) 1-100 >100
Est. Time(Days) 60 To be negotiated
