Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Yushun
Certification: ISO 9001
Model Number: Customized
Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: normal package naked or pack it according to customers' request
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: Negotiated
Detail Information
Name: Industrial Vacuum Bag Smoke And Dust Collector For Steel Production Line Type: Pulsed Jet Cloth Filter
Application: Industrial Dust Removal Condition: New
Dimension: All Size, Customized Warranty: 1 Year
Material: Steel Material Weight: Customized
High Light:

Vacuum Industrial Dust Collector

,

pulse Industrial Dust Collector

,

DMC industrial metal dust collection system


Product Description

 Industrial Vacuum Bag Smoke and Dust Collector for Steel Production Line

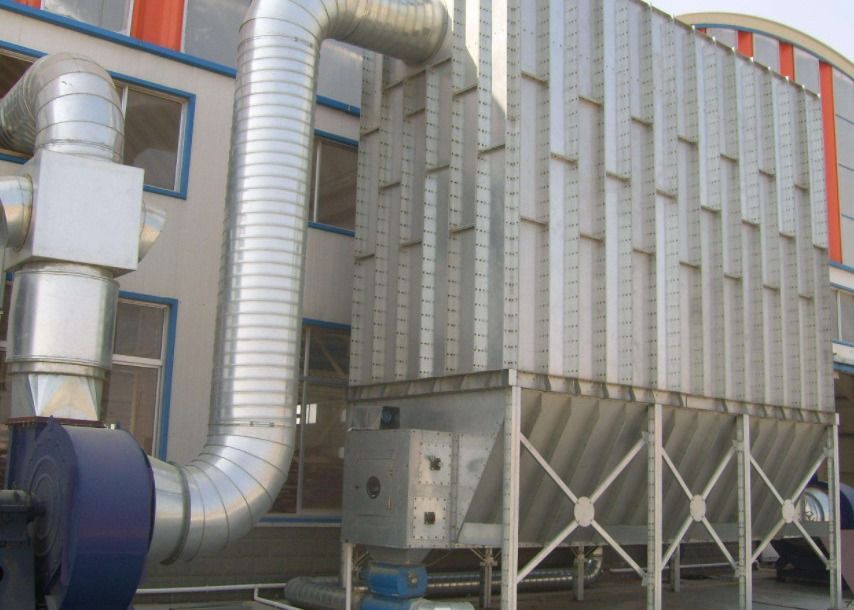

Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 0

The DMC pulse bag filter is a pulse type single-machine bag filter designed and developed by our company after learning from the advanced technology of foreign products in the same industry and improved by the company’s technical department. This type of filter adopts high pressure (pressure value 0.5~0.7MPa), the process of large-flow pulse valve spraying dust removal through the filter bag one by one. Compared with other single-machine bag dust collectors in the same industry in China, it has the characteristics of large dust removal kinetic energy, high dust removal efficiency, and small size. It has the advantages of light weight, simple and compact structure, easy installation, and convenient maintenance (external filter), so it is widely use din smelting, building materials, machinery, metallurgy, mining, coal, non-metallic mineral ultrafine powder processing and other industries. In the ideal equipment for the current environmental protection and dust removal industry.

The working principle of bag type dust collector is as follows: rely on woven or felt woven (pressure) filter cloth as filter material,

when dust gas passes through the filter bag, dust is blocked on the surface of the filter bag, dry air is discharged through the gap between the filter bag fibers, so as to achieve the purpose of separation of dust gas and dust.Its working mechanism is the dust through the filter cloth screen, inertia, adhesion, diffusion and static electricity and other effects and capture.



Model DMC-24 DMC-36 DMC-48 DMC-64 DMC-80 DMC-96 DMC-120
Total filtration area(m3) 18 27 36 48 60 72 90
Filter wind speed(m/min)   1.04-1.67 1.15-1.62 1.21-1.71 1.25-1.67 1.27-1.62 1.28-1.7
Processing air volume(m3/h) 1500 1500-2400 2500-3500 3500-5000 4500-6000 5500-7000 6500-8500
Number of filter bags(bars) 24 36 48 64 80 96 120
Air consumption(m/min) 0.024 0.036 0.048 0.064 0.08 0.096 0.12
Pulse valve(set) 4 6 6 8 10 12 12
Motor model(kw) 2.2 3 3 5.5 5.5 7.5 15
Equipment weight(kg) 300 500 850 1220 1450 2150 2550
Inlet concentration(mg/Nm3) 200
Injection pressure(Mpa) 0.5-0.7
Withstand negative pressure(pa) 5000
Equipment resistance(pa) ≦1200



Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 1

Please kindly send your specific request, we would give you a quotation plan.

1.What annual output do you require?

2.What is the main size range of rebar?

3.How long is the billet?

4.What is the fuel for the furnace?

5.How long does the machine work continuously?

And anything else you think necessary.






Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 2
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 3
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 4
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 5
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 6
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 7
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 8
Vacuum Bag Industrial Dust Collector , Industrial Metal Dust Collection System 9
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:

Quantity (Tons) 1-100 >100
Est. Time(Days) 60 To be negotiated
