| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | normal package naked or pack it according to customers' request |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiated |
| Name: | High Working Speed Wire Rod Rolling Line Steel Production Line | Type: | Steel Rolling Mill |
|---|---|---|---|
| Voltage: | Depending On Production | Weight: | Variable |
| Warranty: | 1 Year | Power: | Variable |
| Dimension: | All Size, Customized | Core Components: | PLC, Engine |
| High Light: | 135m/s Wire Rod Block Mill,Variable Power Wire Rod Block Mill,135m/s steel rolling mill |
||

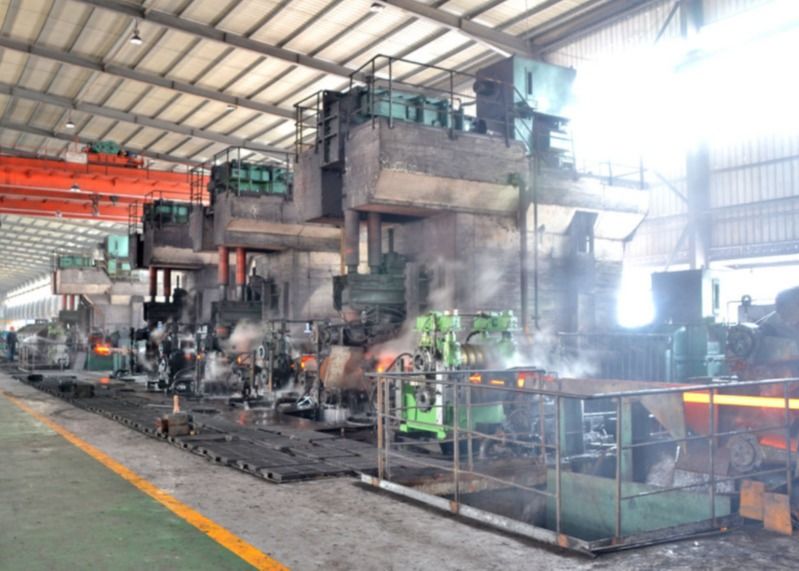

High Working Speed Wire Rod Rolling Line Steel Production Line
Wire rod block mill is composed of top crossed 45°high-speed wire-rod mills / finishing mills. The finishing mill group/wire rod mill is located in high-speed wire-rod workshop. Through several unit rack the continuous micro-tension rolling mill will be transported upstream Ø17 ~Ø21mm of rolling, rolling become Ø5.5 ~ Ø16mm finished wire. The working speed of 90m/s, 135m/s etc.
Features:
1) Mill stand use top crossed 45℃ composition form to achieve no twisting, no contact axis, little axis and shock for equipment, besides, it decrease the center of gravity height, the stability increased as well, while, the total weight has decreased and it is very easy to maintain. Ten stands are concentrated transmission.
2) Roll frame is composed of roller box, bevel gearbox and spare parts of bevel gearbox.
3) Roller box and bevel gearbox adopt outside combinational instruction.
4) Roller loop is tungsten carbide, it is connected on the cantilever roll shaft, we use the specific hydraulic changing roll equipment to replace roll loop, it is convenient and easy.
| Technical Parameter for Wire Rod and Rebar Production Line | |
| Raw material | 60*60mm-200*200mm billets |
| Production capacity | 50,000t-500,000t/per year |
| Dimension of finished product | Φ5.5-16mm |
| Kinds of rolling steel | Carbon steel, low alloy steel, high alloy steel, high-quality carbon structural steel |
| Speed of the exit of tenth frame | 110m/s |
| Material temperature | >900℃ |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
