| Name: | Annual Output 500,000-ton Continuous Charging EAF Steelmaking | Specification: | 500,000 Ton |
|---|---|---|---|
| Tap-to-tap Cycle: | 40 Min | The Annual Total Amount Of Molten Steel: | 572,000 Tons |
| Annual Net Production Time Of Electric Furnace: | 7628 Hours | Average Amount Of Steel Treated Per Furnace: | 50 Tons |
| High Light: | Continuous Charging EAF Steelmaking,Steelmaking Electric Arc Furnace 50 tons,Steelmaking Electric Arc Furnace Continuous Charging |
||

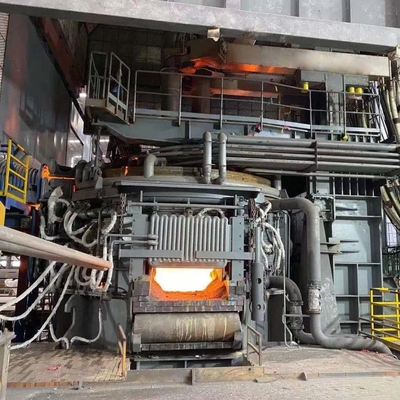

Annual Output 500,000-ton Continuous Charging EAF Steelmaking
Product Description
In this scheme, equipped with one set of 50-ton continuous charging arc furnace, one set of 50-ton ladle refining furnace (optional), one set of supporting dust removal system (optional), one set of cooling water treatment system, etc.
It adopts continuous charging electric arc furnace smelting process, continuous EAF conveys steel scrap and auxiliary raw materials to the furnace through special conveying equipment, prheating of the charges at the same time of smelting, its smoke and dust emissions and noise are small, which can improve the environment.
Compared with traditional technology or other technologies, EAF has high productivity, smelting cycle is less than 40min, it is easy to match with the continuous casting machine, and the power cost is the lowest.
Technical parameters of main equipment
1.EAF
|
№ |
Name |
Unit |
Design value |
Remark |
|
1. |
Type |
AC continuous charging electricarc furnace |
||
|
2. |
Nominal capacity |
t | 50 | |
|
3. |
Max.tapping |
t | 55 | EBT |
|
4. |
Amount of steel left in the furnace after tapping |
t | 25-30 | |
|
5. |
Max.charge weight |
t | 80 | |
|
6. |
Furnace shell diameter |
mm | φ5200 | |
|
7. |
Rated capacity of transformer |
MVA | 42 |
Overloading 20% |
|
8. |
Voltage regulating mode of transformer |
Class 19 on-load voltage regulation |
||
|
9. |
Tap-to-tap cycle |
min | 40 | |
|
Among them: melting and oxidation |
min | 32 | ||
|
Non-energized time |
min | 8 | ||
|
10. |
Power consumption |
KWh/t | 360 | |
|
11. |
Electrode consumption |
Kg/t | 1.0 | |
|
12. |
Tapping method |
EBT | ||
|
13. |
Installed capacity of electric furnace |
KW | 250 | 380V 50HZ |
|
14. |
Water-cooled furnace door C/O lance |
|||
|
Oxygen pressure |
MPa | 1.6 | ||
|
Consumption |
NM3/h | 2500 | ||
|
C powder |
Kg/min | 40 | ||
|
15. |
Furnace wall C/O lance |
|||
|
Oxygen pressure |
MPa | 1.6 | ||
|
Consumption |
NM3/h | 1500×2 | ||
|
C powder |
Kg/min | 40 | ||
2.Ladle refining furnace (optional)
| № |
Name |
Unit |
Value |
Remark |
| 1 |
Maximum treatment capacity of molten steel |
t | 55 | |
| 2 |
Rated capacity |
KVA | 12500 | |
| 3 |
Heating rate of liquid steel |
℃/min |
Average 5.0 |
Max. 6.0 |
| 4 |
Furnace roof and hoisting |
|||
|
Lifting height |
mm | ～500 | ||
|
Lifting speed |
mm/s | 50 | ||
| 5 |
Power consumption capacity of equipment |
kW | 200 | 380V 50HZ |
3.Dust remover(optional)
| № |
Item |
Unit |
EAF |
Refining furnace |
||
| 1 |
Collecting type |
Horizontal feeding preheating channel |
Canopy |
Semi-enclosed moving cover |
||
| 2 |
System air volume |
m3/h | 230000 | 700000 | 150000 | |
| 3 |
Systemic resistance |
Pa | 6000 | 4000 | 4200 | |
| 4 |
Booster fan |
KW | 560 | / | / | |
| 5 |
Natural-convection air cooler |
M2 | 3600 | / | / | |
| 6 |
Pipe flow velocity |
M/s | 16～22 | |||
| 7 |
Main air blower |
Y4-2×73 No.28F(730 r/min) | ||||
| 8 |
Motor specification and power |
1800KW/10KV | ||||
| 9 |
Air blower start |
High voltage inverter |
||||
| 10 |
Dust remover |
MC-22500 | ||||
| 11 |
Filter area |
M2 | 22508 | |||
| 12 |
Velocity of filtering |
M/min | ～0.8 | |||
| 13 |
Compressed air pressure |
MPa | ≧0.3 | |||
Our Advantages
Qualification Certificate
Cooperation and Exchange
Packaging and Delivery
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
