|Name:||Φ20mm Non-twist High-Speed And Heavy Load Wire Rod Coil Production Line||Specification:||Customized|
|Type:||Steel Rolling Mill||Rolling Type:||Negotiated|
|Raw Material:||Steel Product||Color:||Customized|
20mm wire rod block mill,
non twist wire rod block mill,
variable power wire rod rolling mill
Φ20mm Non-twist High-Speed and Heavy Load Wire Rod Coil Production line
The high line refers to the wire rod rolled by "high speed no-twist mill". Rolling speed in 80-160 m/s, each weight (disc) in 1.8-2.5 tons, high dimensional tolerance accuracy (up to 0.02mm), in the rolling process by adjusting the process parameters (especially in the cooling line) to ensure the different requirements of the product.
Steel type: high quality carbon steel, low alloy steel, spring steel, alloy steel, etc., the raw material is generally 150×150×12000mm continuous casting billet, the billet weight is 2 tons. Maximum rolling speed 95m/s, single line production capacity of 600,000 ~ 800,000 tons/year.
Main equipment of high speed wire rod coil production line:
|1.||610-350 horizontal and vertical short stress path rolling mill|
|2.||550-350 2-hi roll horizontal and vertical closed rolling mill|
|4.||Water cooling equipment|
|5.||285 cantilevel type pre-finishing mill group|
|6.||10 rack 45°no-twist high speed and heavy load finishing mill group|
|9.||Air cooling control cooling line|

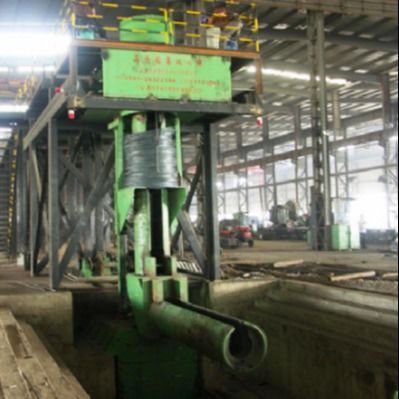

|10.||Coil collecting station|
|11.||P/F cooling line|
|12.||Full- automatic wire rod packer|
The walking beam heating furnace is adopted to reduce the floor space and improve the heating quality of billets.
Horizontal and vertical arrangement of roughing mill, medium mill and pre-finishing mill. The whole production line realizes torsion-free rolling.
The finishing mill is equipped with 8 or 10 super heavy 45° twist-free top crossing mills. The reducing and sizing unit can be retained for on-line heat treatment. The guaranteed speed of finishing mill is 105 m/s.
|Type:||Steel rolling mill|
|Warranty of core components:||1 Year|
|Core components:||Bearing, Gearbox, Motor, Gear|
|After-sales-Service Provided:||Video technical support, online support|
|Applicable industries:||Manufacturing plant, construction works|
|Raw material:||Steel product|
|1.||High dimensional accuracy, small ellipticity|
|2.||Using distributed wind cooling, its composition is uniform, good mechanical properties|
|3.||Because of negative tolerance rolling, it saves metal, and the high speed wire is longer than the normal wire for the same weight|
|4.||Each piece has only one head and tail|
|5.||The high speed wire is 20~40 yuan /t more expensive than the general wire|
Our company can design and manufacture section steel rolling equipment including short-stress path, universal rolling mill. Specification: 750,850,950,1150. Our company can contract the turn-key project for this kind of project, the investment of which is small but the performance is good.
Packaging Details: Wooden case packing or nude packing
|Est.Time(Days)||30||To be negotiated|
Rolling mill is a mill or factory where ingots of heated metal are passed between rollers to produce
sheets or bars of a required cross section and form.
We supply the whole production lines, from induction furnace, CCM to rolling mills, cooling beds
and packing. Our hot rolling mill can produce 8-32mm deformed rebar, round bar and also wire
|Type of steel:||Quality carbon steel, low alloy steel, etc.|
|Material:||Billet size from 80mm*80mm to 150mm*150mm|
|Final products:||Φ5.5-Φ12mm wire rod, Φ8-Φ40mm rebar|
