|Place of Origin:||Jiangsu, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||normal package naked or pack it according to customers' request|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Name:||Steel Billet Continuous Casting Machine For Steel Production Line||Arc Radius:||Various|
|Round Billet Section:||φ110mm、φ130mm、φ150mm、φ180mm||Square Billet Section:||150*150mm|
|Voltage:||Depending On Production||Control System:||PLC|
Steel continuous casting equipment,
Billet continuous casting equipment,
150x150mm billet casting machine

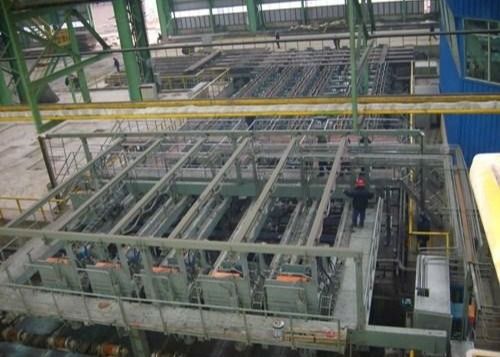

Steel Billet Continuous Casting Machine for Steel Production Line
The production process of casting high temperature molten steel into billet with certain section shape and certain size is called continuous casting steel.
The equipment needed to complete this process is called continuous casting equipment.The electromechanical and hydraulic integration of casting equipment, continuous casting machine body equipment, cutting area equipment, ingot rod collection and conveying equipment constitutes the core equipment of continuous casting steel, which is commonly called continuous casting machine.
1. Production capacity of casting machine: single production capacity of modern large slab continuous casting machine, generally in the range of 2 ~ 2.5 million t/a.The single production capacity of the billet caster can reach 80 ~ 1 million t/a.The single production capacity of billet multi-flow continuous caster is up to 600 ~ 800 thousand tons.
2. Casting machine operation rate: generally more than 80%, more advanced casting machine can reach 85 ~ 90%.
3. High speed casting: the casting speed of the slab caster is 1.2 ~ 1.8m/min.
4. Multi-furnace even pouring: the average number of general even pouring furnace is 4 ~ 6 furnace, there are more than 10 furnace.
5. The cross section size range of the casting billet actually produced by the casting machine, mm:
Slab 125×650 ~ 220×2720(strip steel, welded pipe billet), 350×1300
150×1000 ~ 320×1600(thick plate), 310×2500
Bloom 200×200 ~ 600×670(bar, profiles, wire)
φ230 ~ φ450, 560 octagon (tube) shaped billet, 480×420×720(rail beam)
Billet 80×80 ~ 145×145(wire rod)
100×100 ~ 240×240(bar, profiles)
φ115 ~ φ210(pipe, rod, material)
6.Widely used computer technology: the production process and production management of modern continuous casting machine are automatically completed by computer.
|5.||Secondary cooling zone|
|7.||Piping for water system|
|10.||Dummy bar storing device|
|11.||Tundish on-line baking device|
|12.||Tail billet pinch roller|
|14.||Flame cutting machine|
|16.||Billet delivery roller and cooling bed|
|17.||Billet moving device|
We can design and manufacture the up-to-date billet continuous casting machine in accordance with the user’s steel making capacity, billet size, steel grades and the user’s field conditions. This CCM can product rounds in size of Φ 80-320mm.
Tailor-made specification, factory area, foundation, and capacity, we follow your require-ments the line can be designed as curved and vertical- bend according to the Users requirements.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
|Est. Time(Days)||60||To be negotiated|
