|Place of Origin:||Jiangsu, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||normal package naked or pack it according to customers' request|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Name:||Small And Medium-sized Forging Regenerative Chamber Reheating Furnace||Type:||Induction Furnace|
|Voltage:||Depending On Production||Weight:||Variable|
small chamber reheating furnace,
metal reheating furnace for rolling mill,
medium reheating furnace for rolling mill

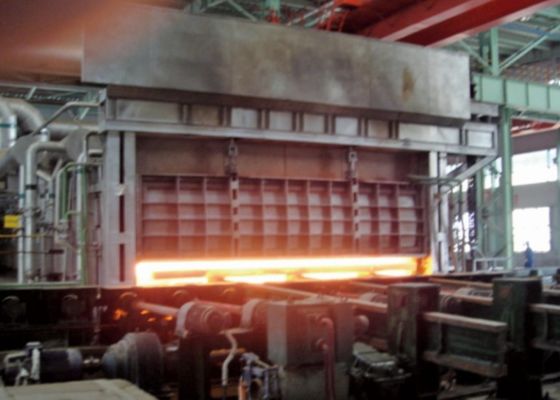

Small and medium-sized forging regenerative chamber reheating furnace
● Fast heating speed, high production efficiency, less oxidative decarburization, saving material and forging die cost. Since the principle of medium frequency induction heating is electromagnetic induction, its heat is generated in the workpiece itself. The average worker can use the medium frequency electric furnace to carry out the continuous work of the forging task ten minutes after going to work. The professional workers do not need to burn the furnace and seal the furnace in advance. .
● Excellent working environment, improve workers' working environment and company image, no pollution, low energy consumption. Induction heating is the most energy-efficient heating method in electric heating furnaces. The power consumption per ton of forgings heated from room temperature to 1200 °C is less than 360 degrees.
● The heating is even, the temperature difference between the core and the core is very small, and the temperature control precision is high.
2. Ladle and towing device
3. The heating tray and a roller device
4. Heating furnace cover and lifting device
5. Electrode lifting mechanism
6. Electric furnace transformer
8. Argon blowing system
9. Cooling system
10. Hydraulic system
11. Low voltage electrical control system
|Furnace name||Chamber furnace|
|Normal operating temperature(℃)||1250|
|Max. operating temperature(℃)||1300|
|Max. Loading capacity(ton)||50|
|Fuel type||Natural gas|
|Burner type||Regenerative burner|
1.The induction coil is insulated by two insulation treatment, high temperature insulating paint and fiberglass ribbon winding.
2.The top of the furnace body is designed with sliding cover, which is convenient for maintenance and inspection.
1.The feeding system adopts pinch roll feeding, which is suitable for bar diameter range of 40-120mm.
2.The feeding speed is controlled by variable frequency motor and the feeding speed is adjustable.
3.The pitch roller feeding motor and the reducer all adopt aluminum shell, which can effectively prevent the hot around the coil
1.This system can accurately control the outlet water temperature, the water inlet and outlet of furnace body adopt water-cooled copper plate.
2.The cooling water pipe of the furnace body adopts high temperature carbon-free hose, the service lifetime is more than three
1. The main control board of the cabinet is micro computer control, one-key zero pressure start, plug and play.
2.The separate insolation design of water pressure meter of furnace body and control cabinet can make the user more convenient and intuitive to monitor the water pressure of control cabinet and furnace body.
|Specification and Technical Parameter|
|Model||MF power||Input voltage||DC Current||MF frequency|
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
|Est. Time(Days)||60||To be negotiated|
