| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | normal package naked or pack it according to customers' request |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiated |
| Name: | Big Capacity Intermediate Frequency Induction Steel Melting Furnace | Type: | Induction Furnace |
|---|---|---|---|
| Voltage: | Depending On Production | Weight: | Variable |
| Condition: | New | Warranty: | 1 Year |
| Application: | Melting Metal | Power: | Variable |
| High Light: | 2T medium frequency melting furnace,380V medium frequency melting furnace,2000kg steel melting induction furnace |
||

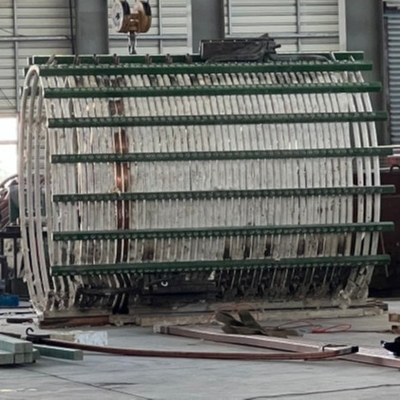

Big Capacity Intermediate Frequency Induction Steel Melting Furnace
The working frequency of medium frequency induction furnace is between 50~ 2000 Hz, which is widely used in the smelting of non-ferrous and ferrous metals.Compared with other casting equipment, medium-frequency induction furnace has the advantages of high thermal efficiency, short melting time, less loss of alloy elements, wide melting material, less pollution to the environment, and accurate control of the temperature and composition of metal liquid, etc.
Features of production line
The mechanical transmission device of intermediate frequency production line equipment adopts single position mode, and intermediate frequency quenching, intermediate frequency tempering and annealing are carried out according to the working procedure by time.The replacement of inductor adopts integral hoisting, rapid positioning and rapid connection of water and electricity (one set of inductor can be replaced in a short time).The sensor axis position can be conveniently adjusted to meet the heating requirements of various billet specifications.Production of this set of equipment according to the needs of each product, by in and out of the store material support, the front-rear feeding device, workpiece spin roller transmission device, medium frequency quenching heating module, medium frequency quenching insulation module and intermediate frequency module, the module intermediate annealing, quenching tempering spray device, hydraulic station, center console, automatic control system of ten part, etc.
Detailed Specification of Induction Melting Furnace
| No. | Item | Parameters |
| 1. | Power | 3 phase 6 pluse 380V 800Hz 2000KW |
| 2. | Power factor | 0.9 |
| 3. | Start-up success rate | 100% |
| 4. | Power conversion efficiency | 0.98 |
| 5. | Type | KGPS-2000KW-3Ton |
| 6. | Rectifier | Parallel circuit |
| 7. | Input current | 880A |
| 8. | Output DC voltage | 1750V |
| 9. | Output DC current | 1400A |
| 10. | Max. Output voltage | 2500V |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
