| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Yushun |
| Certification: | ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiated |
| Packaging Details: | normal package naked or pack it according to customers' request |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Negotiated |
| Name: | Ferro Alloy Ladle Refining Furnace | Voltage: | 20kw |
|---|---|---|---|
| Condition: | New | Usage: | Melting Furnace |
| Melting Material: | Ferrous | Rated Power: | 2000KVA |
| Electrode Diameter: | 200 Mm | Roof Lifting Type: | Hydraulic Cylinder Chain Type |
| High Light: | Ferro Alloy LRF Steel Making,20kw LRF Steel Making,Ferro Alloy LRF in steel plant |
||

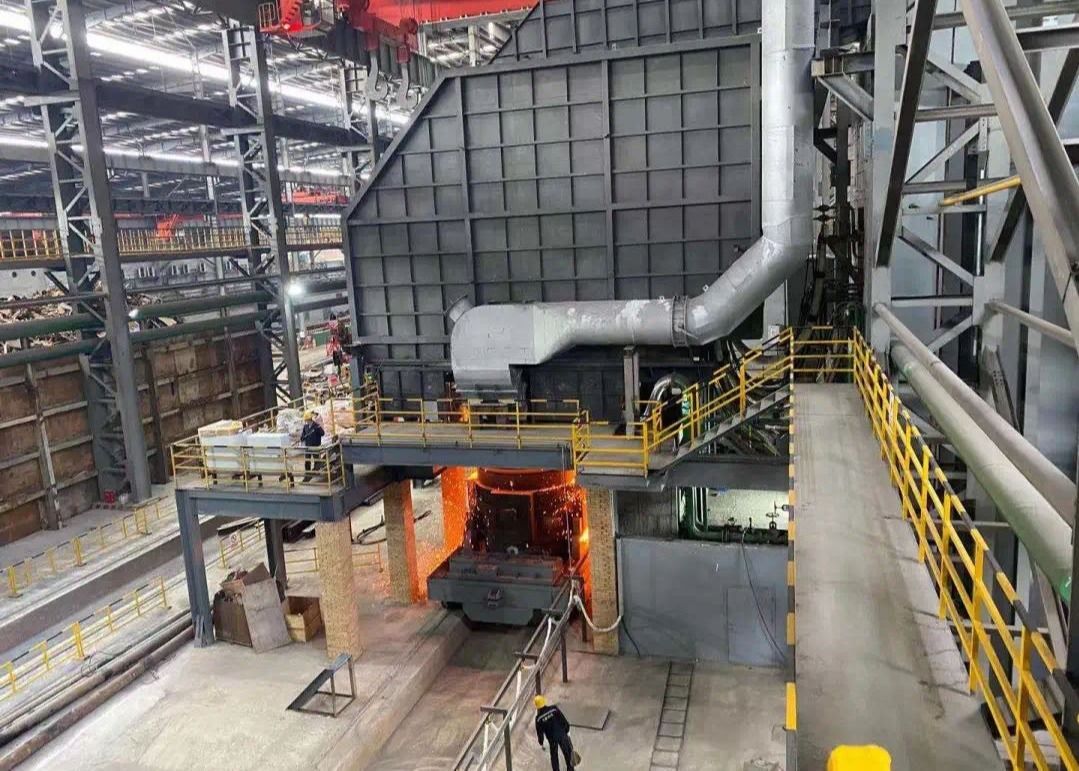

Ferro Alloy Ladle Refining Furnace
1. LF is not available for smelting, which is just used to provide good reduction reaction environment for molten steel.
2. LF refining furnace is ladle as smelting vessel, with blowing argon stirring, can achieve a better affect of removing sulfur, impurities, as well as adjusting the composition of the alloy.
3. If the primary smelting equipment is induction furnace, the follows LF, which can improve the quality of molten steel, completely finish adjusting the alloy composition.(such as carbon steel can be adjusted as stainless steel or other types of steel in LF)
4. If the primary smelting equipment is EAF, then follows LF, which can replace the arc furnace to finish the refining process of molten steel, at the same time, arc furnace only as a melting furnace.
This method can significantly improve the smelting efficiency.
LF Performance
| Item | Unit | Parameters |
| Rated refining capacity | T | 10-12 |
| Rated transformer power | KVA | 2000 |
| Tap to tap time | min | 45 |
| Molten steel heating rate | min | ≧3 |
| Power consumption | ℃/min | ≦0.6-0.7 |
| Electrode consumption | KWh/t*℃ | ≦12-15g |
Component Parameters
| Transformer | |||
| Rated Power | KVA | 2000 | Overload 20% |
| Primary Voltage | KV | 20 | |
| Secondary Voltage | V | 160-100 | 5 speed |
| Ladle | |||
| Max diameter of ladle | mm | Φ1920 | |
| Spare height | mm | 500 | |
| Large current system | |||
| Impedance unbalance | ％ | ≦4 | |
| Theoretical value resistance | |||
| Electrode system | |||
| Electrode diameter | mm | Φ200 | Graphite diameter |
| Electrode distribution | mm | Φ460 | |
| Lifting speed | M/min | Up/down:4/3 | |
| Electrode lifting height | mm | 1600 | |
| Ladle car | |||
| Weight of load | T | 50 | |
| Drive mode | motor | Frequency control | |
| Speed | m | 2-16 | |
| Water cooling system | |||
| Flow rate | M3/h | 80 | |
| Inlet pressure | Mpa | 0.4-0.6 | |
| Hydraulic station | |||
| Rated pressure | 17.5 | ||
Application
Ladle refining furnace belongs to the secondary refining equipment, which typically to be used
follows the primary melting furnace. Its main function is to remove sulfur, impurity from molten steel
and adjust chemical components, thereby, improve quality of molten steel. LF is mainly used in
high-quality carbon steel, stainless steel, manganess steel and other metal smelting.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
